How To Install Rear Grab Handles On Jeep Wrangler
How to Install GraBars Handles, Front and Rear on your 07-18 Jeep Wrangler JK 2 Door; 2022 Jeep Wrangler JL 2 Door
Installation Time
30 minutes
Tools Required
- 10mm and 13mm sockets
- 5mm and 6mm hex sockets
- ii-3" socket extension
- Socket wrench
- Newspaper towel
Shop Parts in this Guide
- GraBars Genuine Solid Steel Front and Rear Grab Handles; Black Grips (07-18 Jeep Wrangler JK 4-Door)
- GraBars Genuine Solid Steel Front and Rear Grab Handles; Blackness Grips (07-eighteen Jeep Wrangler JK 2-Door)

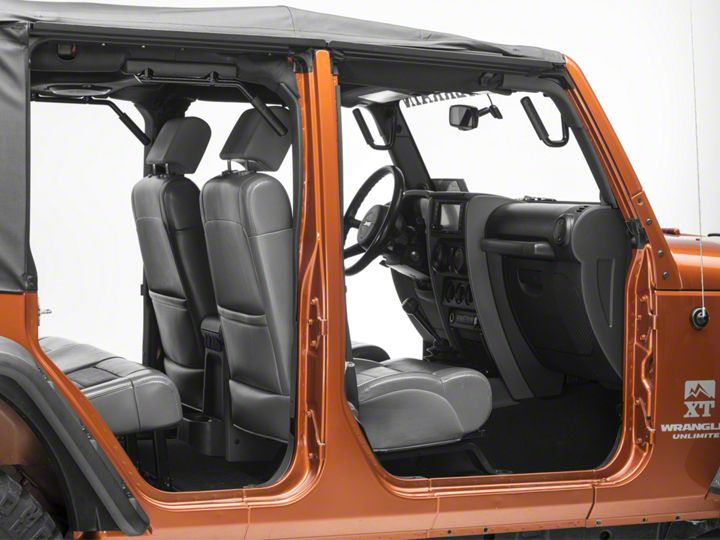

Before:
Installation Instructions:
1. Locate the bolts in the upper corner of the windshield frame and the outer side of the sunscreen base.
two. Utilise the paper towel under the commodities in the column to prevent losing the bolt within the plastic housing. Remove the newspaper towel one time the bolt is out.
3. Remove the bolts located in Step 1, using the 13mm socket and wrench with extension.
four. Locate the Bolts and Extension Sleeves for the Front handles.
5. Button the bolts through the handle in the advisable locations (brusk to top, long to side). Ensure you are using the right handle for the correct side of the vehicle: the counter-sink holes should be towards the inside of the vehicle then the bolts tin can tighten down into them.
six. Install the upper bolt first, (ensuring the extension sleeve is already on the bolt), using the 6mm Hex socket. Just tighten plenty to keep handle in place.
**If y'all find this bolt having trouble threading hands, remove the handle and start the longer bolt into this upper pigsty without the handle. Once it is solidly in place, confirm the commodities is directly up and down. If it is non, the move the bolt by hand until it is (the nut in the upper part of the frame may non take been installed straight on, this will move information technology into identify for an easier installation).**
7. Install the side commodities, (ensuring the extension sleeve is already on the bolt), using the 6mm Hex socket. Only tighten enough for the bolt to take hold of and hold.
8. Alternating between the bolts, tightening until both cannot be turned further past manus (approximately 300lbs torque). Shake the handle occasionally to ensure there is no play while tightening, and exist conscientious non to cantankerous thread the bolts.
nine. Repeat Steps 1-8 on the other side to install the other front handle.
10. To install the Rear Handles, locate the bolts into the scroll bar.
11. Remove these bolts using the 10mm socket with the socket wrench and extension.
12. Install the handle using the 5mm hex socket with the wrench, tightening the two bolts by alternating between them until solidly in identify (approximately 120lbs torque). Take intendance not to cross thread the bolts.
13. Repeat Steps 10-12 for the other side.
Afterward:
Installation Instructions Written by ExtremeTerrain Customer Royal Cook 12/26/2014
